Question by Giancoli, Douglas C., Physics: Principles with Applications, 7th Ed., ©2014, Reprinted by permission of Pearson Education Inc., New York.
Problem 61
Q

A milliammeter reads 35 mA full scale. It consists of a 0.200.20-Ω\Omega resistor in parallel with a 3333-Ω\Omega galvanometer. How can you change this ammeter to a voltmeter giving a full-scale reading of 25 V without taking the ammeter apart? What will be the sensitivity (Ω/V)(\Omega\textrm{/V}) of your voltmeter?

A
  1. 710  Ω710 \; \Omega
  2. 29  Ω/V29 \; \Omega\textrm{/V}

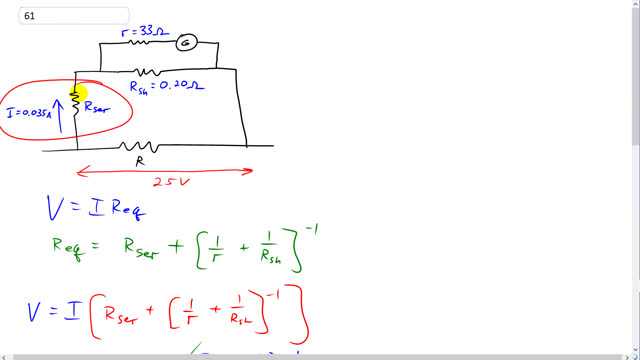

Giancoli 7th Edition, Chapter 19, Problem 61 solution video poster
Padlock

In order to watch this solution you need to have a subscription.

Get Started
View sample solution

|

Log in
COMMENTS
By markch23 on Fri, 3/4/2022 - 4:15 AM

why does adding Rser Resistor in series turn the ammeter into a voltmeter exactly? thanks
