Question by Giancoli, Douglas C., Physics: Principles with Applications, 7th Ed., ©2014, Reprinted by permission of Pearson Education Inc., New York.
Problem 58
Q

Two resistors and two uncharged capacitors are arranged as shown in Fig. 19–72. Then a potential difference of 24 V is applied across the combination as shown.

  1. What is the potential at point a with switch S open? (Let V = 0 at the negative terminal of the source.)
  2. What is the potential at point b with the switch open?
  3. When the switch is closed, what is the final potential of point b?
  4. How much charge flows through the switch S after it is closed?
Problem 58.

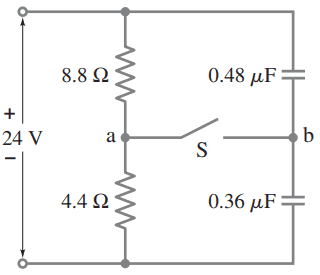

Figure 19-72.
A
  1. 8.0 V8.0 \textrm{ V}
  2. 14 V14 \textrm{ V}
  3. 8.0 V8.0 \textrm{ V}
  4. 4.8  μC4.8 \; \mu C of charge flowed through the switch from right to left.

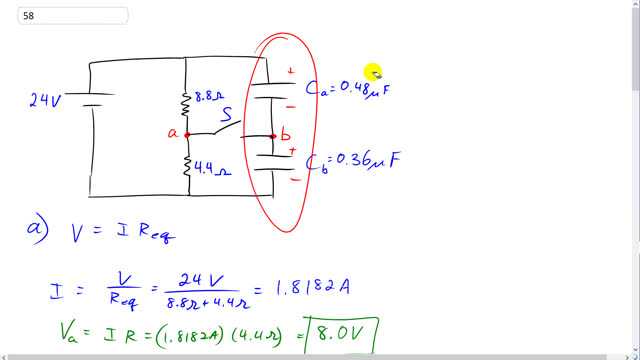

Giancoli 7th Edition, Chapter 19, Problem 58 solution video poster
