Problem 36

Suppose two batteries, with unequal emfs of 2.00 V and 3.00 V, are connected as shown in Fig. 19–62. If each internal resistance is $r = 0.350 \; \Omega$ , and $R = 4.00 \; \Omega$ , what is the voltage across the resistor $R$ ?

Figure 19-62.

2.40 \textrm{ V}

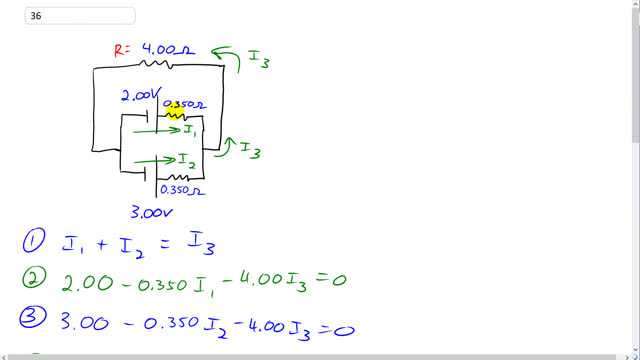

Giancoli 7th Edition, Chapter 19, Problem 36 solution video poster

In order to watch this solution you need to have a subscription.

Get Started

View sample solution
