Question

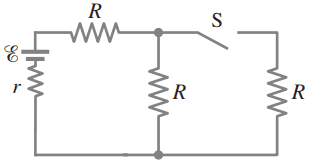

Three equal resistors (R) are connected to a battery as shown in Fig. 19–51. Qualitatively, what happens to a) the voltage drop across each of these resistors, b) the current flow through each, and c) the terminal voltage of the battery, when the switch S is opened, after having been closed for a long time? d) If the emf of the battery is 9.0 V, what is its terminal voltage when the switch is closed if the internal resistance r is 0.50 \; \Omega and R = 5.50 \; \Omega? e) What is the terminal voltage when the switch is open?

Accepted Answer

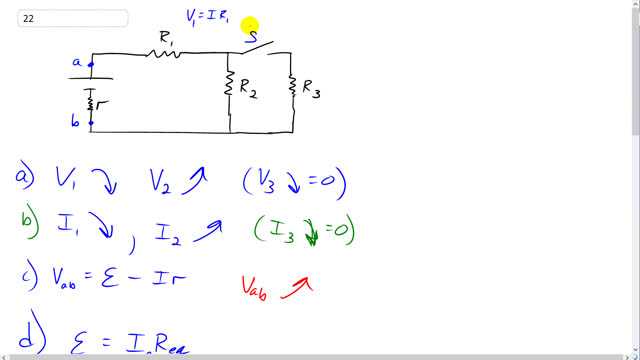

a) V_1 increases as V_2 decreases.  b) I_1 decreases as I_2 increases.  c) V_{ab} increases.  d) 8.5 V  e) 8.6 V
