Problem 52

Estimate the value of resistances needed to make a variable timer for intermittent windshield wipers: one wipe every 15 s, 8 s, 4 s, 2 s, 1 s. Assume the capacitor used is on the order of $1 \; \mu \textrm{F}$ . See Fig. 19–67.

Figure 19-67.

R_{15} = 15 \times 10^6 \; \Omega, R_{8} = 8 \times 10^6 \; \Omega, R_4 = 4 \times 10^6 \; \Omega

R_2 = 2\times 10^6 \; \Omega, R_1 = 1\times 10^6 \; \Omega

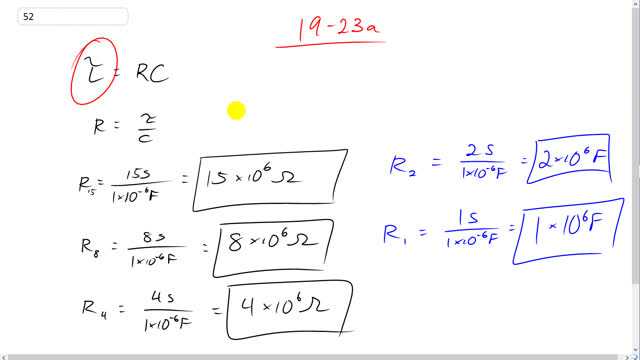

Giancoli 7th Edition, Chapter 19, Problem 52 solution video poster

In order to watch this solution you need to have a subscription.

Get Started

View sample solution
