Problem 35

Suppose that the current gain of the transistor in Fig. 29–41 is $\beta = i_\textrm{C}/i_\textrm{B} = 85$ . If $R_\textrm{C} = 3.8 \textrm{ k} \Omega$ , calculate the ac output voltage for an ac input current of $2.0 \; \mu \textrm{A}$ .

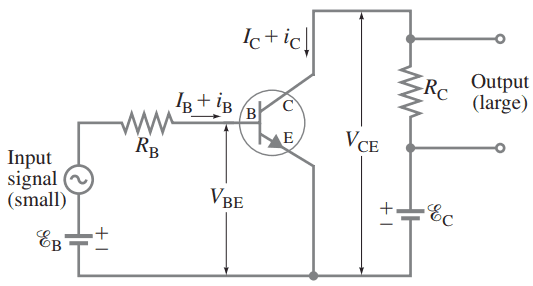

An npn transistor used as an amplifier. I_B is the current produced by E_B (in the absence of a signal), i_B is the ac signal current (= change in I_B).

Figure 29-41 An npn transistor used as an amplifier.

I_B

is the current produced by

\xi_B

(in the absence of a signal),

i_B

is the ac signal current (= change in

I_B

0.65 \textrm{ V}

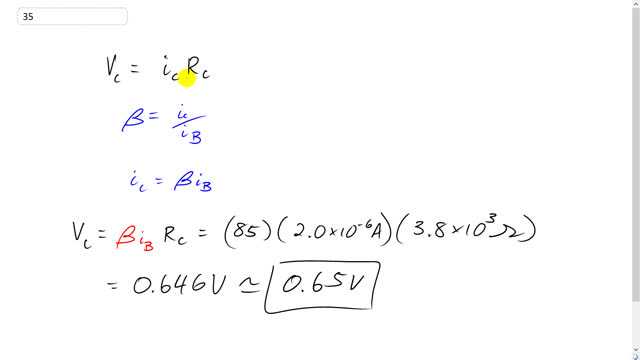

Giancoli 7th Edition, Chapter 29, Problem 35 solution video poster
