Question by Giancoli, Douglas C., Physics: Principles with Applications, 7th Ed., ©2014, Reprinted by permission of Pearson Education Inc., New York.
Problem 29
Q

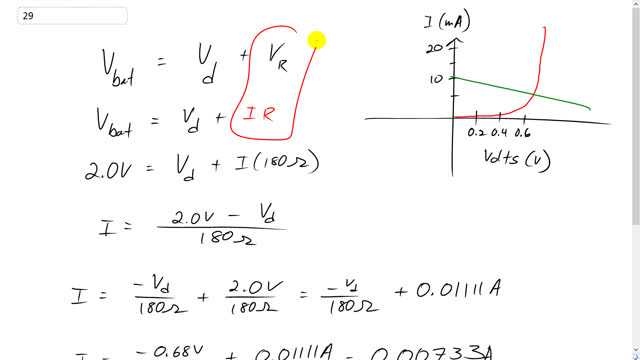

Suppose that the diode of Fig. 29–30 is connected in series to a 180180-Ω\Omega resistor and a 2.0-V battery. What current flows in the circuit? [Hint: Draw a line on Fig. 29–30 representing the current in the resistor as a function of the voltage across the diode; the intersection of this line with the characteristic curve will give the answer.]

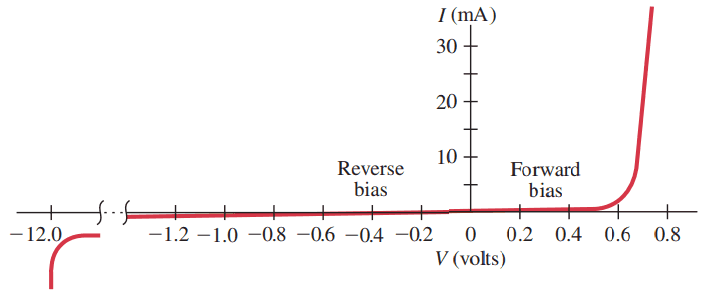

Current through a silicon pn diode as a function of applied voltage.
Figure 29-30 Current through a silicon pn diode as a function of applied voltage.
A
7.3 mA7.3 \textrm{ mA}
