Problem 31

A 120-V rms 60-Hz voltage is to be rectified with a full-wave rectifier as in Fig. 29–32, where $R = 33 \textrm{ k}\Omega$ , and $C = 28 \; \mu \textrm{F}$ .

Make a rough estimate of the average current.
What happens if $C = 0.10 \; \mu \textrm{F}$ ? [Hint: See Section 19–6.]

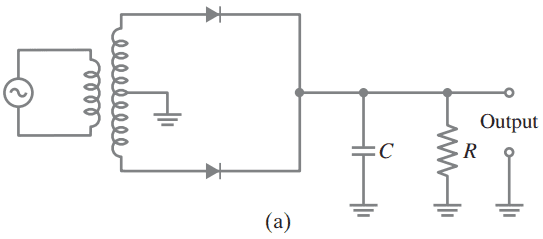

Figure 29-32 (a) Full-wave rectifier circuit (including a transformer so the magnitude of the voltage can be changed).

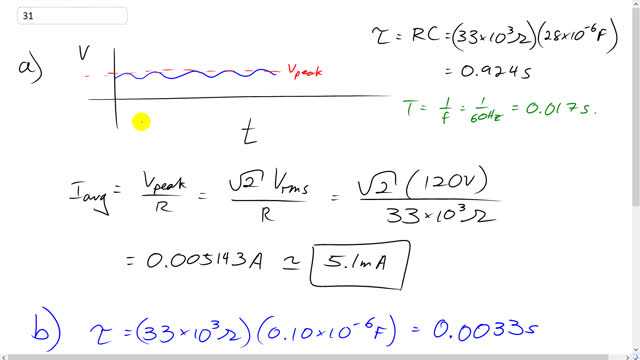

$5.1 \textrm{ mA}$
$3.6 \textrm{ mA}$
