Question by Giancoli, Douglas C., Physics: Principles with Applications, 7th Ed., ©2014, Reprinted by permission of Pearson Education Inc., New York.
Problem 27
Q

A silicon diode, whose current–voltage characteristics are given in Fig. 29–30, is connected in series with a battery and a 960960-Ω\Omega resistor. What battery voltage is needed to produce a 14-mA current?

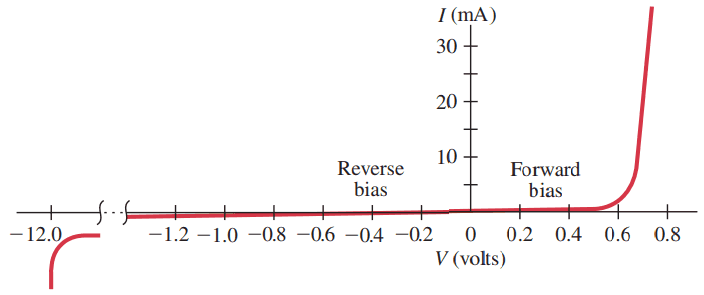

Current through a silicon pn diode as a function of applied voltage.
Figure 29-30 Current through a silicon pn diode as a function of applied voltage.
A
14 V14 \textrm{ V}

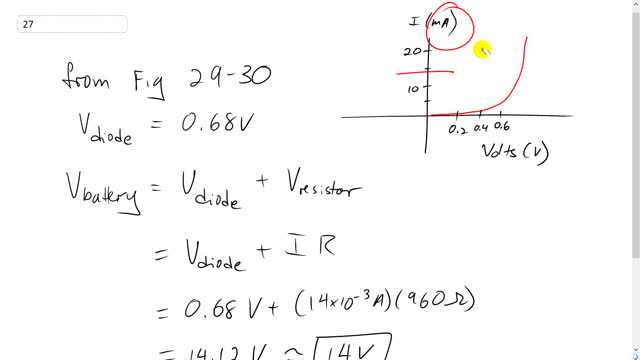

Giancoli 7th Edition, Chapter 29, Problem 27 solution video poster
