Problem 17
Q

In Fig. 21–11, the rod moves with a speed of 1.6 m/s on rails 30.0 cm apart. The rod has a resistance of 2.5  Ω2.5 \; \Omega. The magnetic field is 0.35 T, and the resistance of the U-shaped conductor is 21.0  Ω21.0 \; \Omega at a given instant. Calculate

  1. the induced emf,
  2. the current in the conductor, and
  3. the external force needed to keep the rod’s velocity constant at that instant.
A conducting rod is moved to the right on a U-shaped conductor in a uniform magnetic field B that points out of the page. The induced current is clockwise.

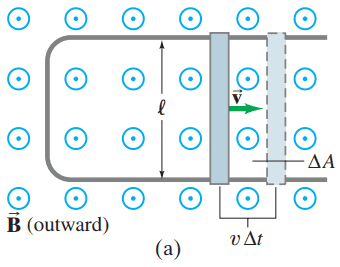

Figure 21-11 (a) A conducting rod is moved to the right on a U-shaped conductor in a uniform magnetic field B⃗\vec{B} that points out of the page. The induced current is clockwise.
Upward force on an electron in the metal rod (moving to the right) due to B pointing out of the page; hence electrons can collect at the top of the rod, leaving + charge at the bottom.

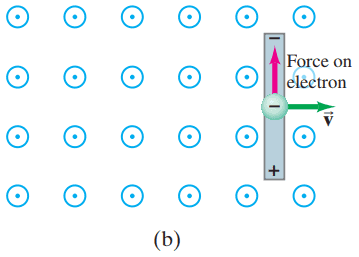

Figure 21-11 (b) Upward force on an electron in the metal rod (moving to the right) due to B⃗\vec{B} pointing out of the page; hence electrons can collect at the top of the rod, leaving + charge at the bottom.
A
  1. 0.17 V0.17 \textrm{ V}
  2. 7.1×10−3 A7.1 \times 10^{-3} \textrm{ A}
  3. 7.5×10−4 N7.5 \times 10^{-4} \textrm{ N}

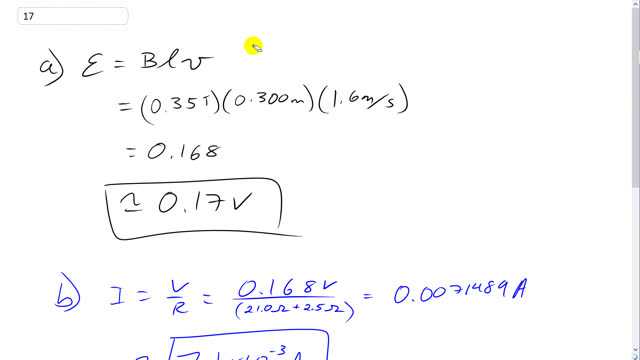

Giancoli 7th Edition, Chapter 21, Problem 17 solution video poster
