Question

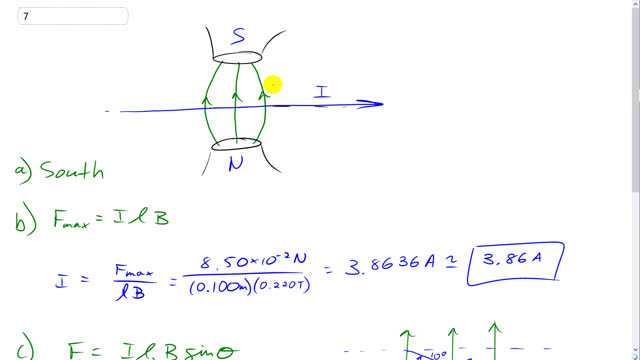

The force on a wire is a maximum of 8.50 x 10^{-2} N  when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to “jump” toward the observer when the current is turned on. a) What type of magnetic pole is the top pole face? b) If the pole faces have a diameter of 10.0 cm, estimate the current in the wire if the field is 0.220 T. c) If the wire is tipped so that it makes an angle of 10.0 ° with the horizontal, what force will it now feel? [Hint: What length of wire will now be in the field?]

Accepted Answer

a) South b) 3.86 A  c) 8.50 x 10^{-2} N

The force on a wire is a maximum of $8.50 \times 10^{-2} \textrm{ N}$ when placed between the pole faces of a magnet. The current flows horizontally to the right and the magnetic field is vertical. The wire is observed to “jump” toward the observer when the current is turned on.
