A toroid is a solenoid in the shape of a donut (Fig. 20–60). Use Ampère’s law along the circular paths, shown dashed in Fig. 20–60a, to determine that the magnetic field a) inside the toroid is B = \mu_0NI/2 \pi R, where N is the total number of turns, and b) outside the toroid is B = 0. c) Is the field inside a toroid uniform like a solenoid’s? If not, how does it vary?

a) B = \dfrac{\mu_o NI}{2\pi R} b) B = 0 c) Since the field is proportional to \dfrac{1}{R}, it is not uniform across the width of the torroid. It changes with distance from the center.

Your Textbook Edition Pricing About Us Features Reviews FAQ Contact

Get started Log in

Giancoli's Physics: Principles with Applications, 7th Edition

Magnetism

Change chapter

20-3: Force on Electric Current in Magnetic Field

20-4: Force on Charge Moving in Magnetic Field

20-5 and 20-6: Magnetic Field of Straight Wire, Force between Two Wires

20-7: Solenoids and Electromagnets

20-8: Ampère's Law

20-9 and 20-10: Torque on Curent Loop, Motors, Galvanometers

20-11: Mass Spectrometer

20-12: Ferromagnetism, Hysteresis

0:41

0:39

7:17

Problem 49

A toroid is a solenoid in the shape of a donut (Fig. 20–60). Use Ampère’s law along the circular paths, shown dashed in Fig. 20–60a, to determine that the magnetic field

inside the toroid is $B = \mu_0NI/2 \pi R$ , where $N$ is the total number of turns, and
outside the toroid is B = 0.
Is the field inside a toroid uniform like a solenoid’s? If not, how does it vary?

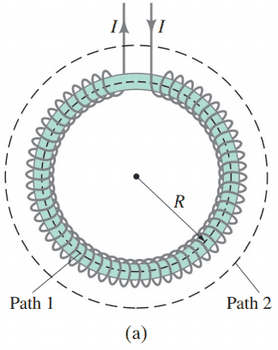

Figure 20-60 (a) A toroid or torus.

Problem 49. (b) A section of the toroid showing direction of the current for three loops: a dot means current toward you, and a cross means current away from you.

Figure 20-60 (b) A section of the toroid showing direction of the current for three loops:

\odot

means current toward you, and

\otimes

means current away from you.

$B = \dfrac{\mu_o NI}{2\pi R}$
$B = 0$
Since the field is proportional to $\dfrac{1}{R}$ , it is not uniform across the width of the torroid. It changes with distance from the center.

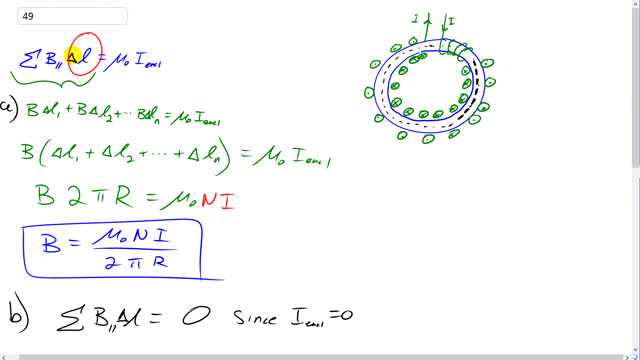

Giancoli 7th Edition, Chapter 20, Problem 49 solution video poster
